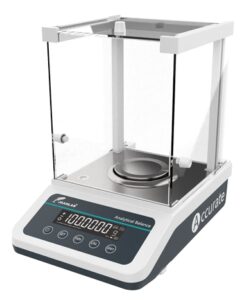

Analytical Balance FA-S, 0.001g

  1. Large dual screen with backlight(front and back display),clear reading
  2. With counting, unit conversion and weighing
  3. Multi weighing units conversation: g/ct/oz
  4. Universal power adapter supplied as standard, can use standard battery
  5. The low power warning, overload indication, level indicator, adjustable feet
  6. Stainless steel weighing pan and weighing platform
  7. Five-side full-transparent glass windscreen



FA-S Analytical Balance Technical Data

Model

FA2003S

FA3003S

FA5003S

Max Capacity

200 g

300 g

500 g

Accuracy class

II

Min readout

20 mg

Accuracy

0.001 g

Repeatability

±0.0002 g

Linearity error

±0.0002 g

Stability time

≤3S

Working temp.

15℃ ~ 35℃

Pan size

φ120mm

Dimension

320 x 195 x 280 mm

Power supply

 Power Adapter & 1.5V Dry Battery x 4

Calibration mode

External Calibration

G.W.

4.0 kg

N.W.

3.0 kg

Packing size

375 x 255 x 340 mm

Communication interface

RS232 (USB interface optional)

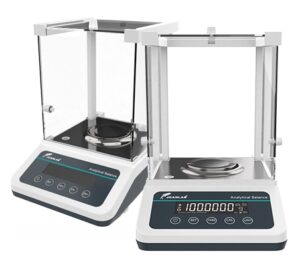

Analytical Balance – FA, 0.01g

  1. Electromagnetic force compensation technology.
  2. Aluminum alloy die cast base and stainless steel pan.
  3. Super bright LED display with backlight.
  4. RS232 Interface.
  5. Clear glass windshield supplied as standard.
  6. Overload protection, bubble level adjustment, under hook.
  7. Full capacity substraction.
  8. Multi weighing units conversation: g/mg/ct/oz.
  9. Internal calibration for choice.
  10. Weighing, piece counting, percentage weighing.
  11. Universal power adapter supplied as standard.
  12. Certificated calibration weight supplied as standard.



FA Analytical Balance Technical Data

Model

FA1004

FA1004N

FA1204

FA1204N

FA2004
FA2004N

FA2204
FA2204N

Max Capacity

100 g

120 g

200 g

220 g

Accuracy class

I

Min readout

0.01 g

Accuracy

0.1 mg

Repeatability

±0.0002g

Linearity error

±0.0003g

Stability time

≤3S

Working temp.

15℃ ~ 35℃

Pan size

Standard Model φ80mm / Optional Model φ90mm

Dimension

300 x 200 x 295 mm

Power supply

Power Adapter

Calibration mode

External Calibration/Internal Calibration

G.W.

6.0 kg

N.W.

5.0 kg

Packing size

425 x 320 x 415 mm

Communication interface

RS232 (USB interface optional)

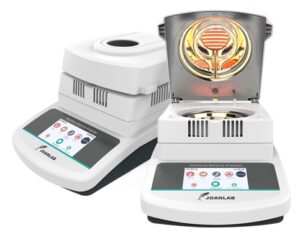

Moisture Analyzer

  1. High-brightness LED display screen, clear readout.
  2. Solid and durable Aluminum sample weighing pan for easy clean.
  3. The double bond design, easy operate.
  4. Overload protection, over temperature protection, door lock protection, weighing overload protection and multiple protection measures.
  5. Built-in temperature, time and other parameters suitable for various types of sample testing, one-key operation.
  6. High-performance halogen heating lamp for heating stable and quick.



Moisture Analyzer Technical Data

Model

MBA1002

MBA1002a

MBA1002b

MBA1003

Max Capacity

100g

Measuring accuracy

0.01 g

0.005 g

0.002 g

0.001 g

Actual scale dividing value

1.0 mg

Verification scale dividing value

10.0 mg

Moisture test accuracy

±0.5%   (sample ≥ 2g)

Moisture content determines readability

0.02% ~ 0.1%   (sample ≥ 2g)

Temp control adjustment tolerance

±1℃

Heating temp set range

60 ~ 160 ℃  (adjust based on 1℃)

Heating time set range

0 min ~ 99 min  (adjust based on 1 min)

Analysis method

Manual / Timing / Automatic

Display parameters
(9 kinds)

Sample weight(g) ; Dry weight(g);  Heating time(min; sec); Drying temperature; The end way; Water loss rate (water content) = (G-g) /G; Drying rate=G/g; Moisture regain(G-g) /g; Wet weight rate=G/g

Moisture content determination range

 0% ~ 100%

Dimension

360 x 215 x 170 (mm)
